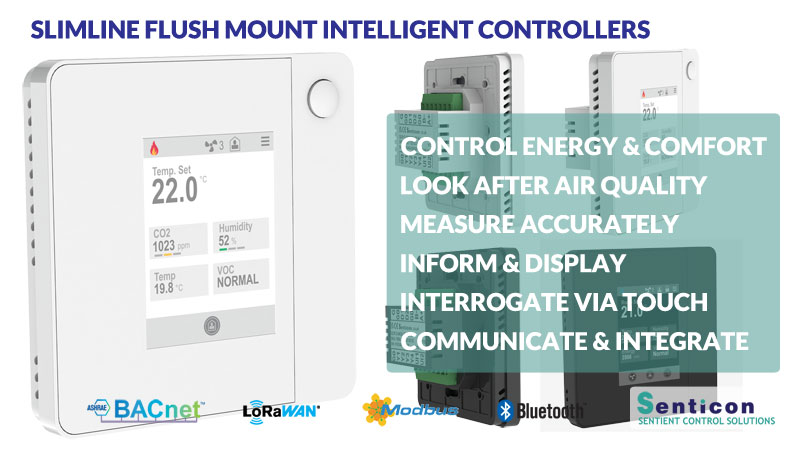

Senticon Slimline Touchscreen Controllers are Flush Mounted giving only 13.8mm profile from the wall. They offer CO2, temperature, TVOC, humidity and occupancy control. Customisable colour touchscreen with capacitive glass interface provides interface for measurements, operating modes, alarms, setpoints, plant overrides etc. The controllers are available with wide range IO-options to suit the different HVAC applications including:-
TCR12/QCR12 Slimline Controllers: Built-in temperature / CO2, 2 Universal Inputs (Temperature, Voltage, Digital), 2 Analogue Outputs (AO - 0..10Vdc), 2 Digital Outputs (24Vac triac), 24V Power
TCR13/QCR13 Slimline Controllers: Built-in temperature / CO2, 2 UI (Temperature, Voltage, Digital), 1 AO (AO - 0..10Vdc), 2 DO (24Vac triac), 3 RO (relay outputs, 230V, 5A), 24V Power
TCR14/QCR14 Slimline Controllers: Built-in temperature / CO2, 1 UI (Temperature, Voltage, Digital), 3 AO (AO - 0..10Vdc), 1 RO (relay output, 230V, 5A), 90-205VAC power
TCR15/QCR15 Slimline Controllers: Built-in temperature / CO2, 2 UI (Temperature, Voltage, Digital), 4 AO (AO - 0..10Vdc), 90-205VAC power
All controller models are available with BACnet MS/TP, Modbus RS485, LoraWan and with Bluetooth SmartApp integration.
For quick overview please click the below links from the Senticon product catalogue:-
TCR12 and QCR12 Slimline BACnet, Modbus and LoraWan Controller Overview
TCR13 and QCR13 Slimline BACnet, Modbus and LoraWan Controller Overview
TCR14/15 and QCR14/15 Slimline BACnet, Modbus and LoraWan Controller Overview
