The QER10 Smart BACnet CO2 and Temperature sensors have been designed for measuring CO2 and temperature in modern buildings. The QER10 BACnet sensors can have additional VOC (Volatile Organic Compounds), Relative Humidity or PIR Occupancy sensor options. With LoraWan option the sensors can connect wirelessly to IoT or Building Management Systems.

The sensors have 2 x Universal Inputs (NTC10 resistance, 0-10V and digital), 4 x 0-10Vdc outputs and optional 24V relay output. The outputs can be used to send the measurement signals to BMS and other building controllers. The measurement signals can be scaled to match the controller input ranges. The inputs and outputs can also be controlled over the network, making the device operate as intelligent BACnet I/O-module.

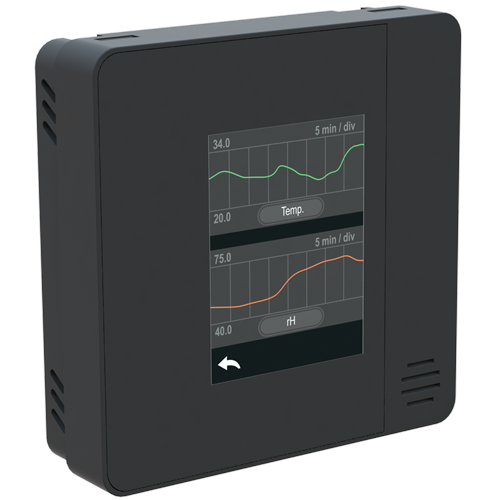

With LCD colour display option the sensor can be used to indicated measurements and status of the control system. The measurement locations, descriptions, language etc. can be configured to suit the requirements. The sensor can also display parameters such as energy and water consumption readings.

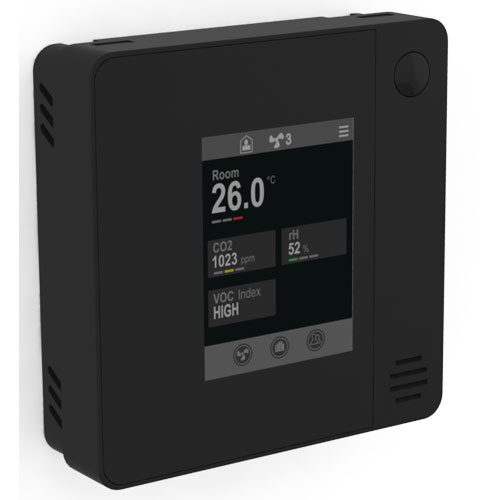

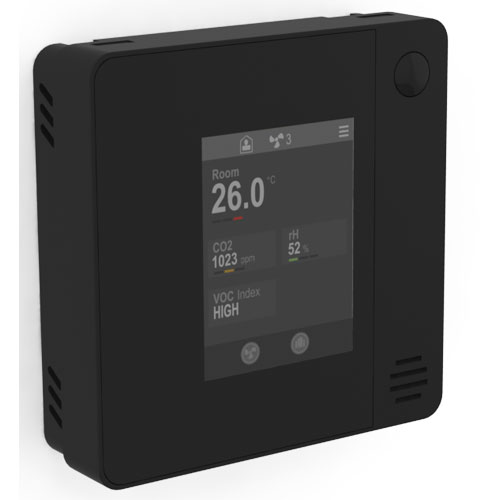

The TS colour touchscreen option converts the smart sensor to operate also as the Room Interface Panel. The sensor can display measurements and energy readings, as well as it can be used to change the system setpoints, override the boost (timed) on/off, configure the fan speed levels and the operating modes. The display can be locked from unauthorized use.

The smart sensors also incorporate 2 x PI control loops that can be used e.g. to control cooling and CO2 levels (VAV function). The sensors can also provide single stage heating/cooling/humidity/dehumidify control.

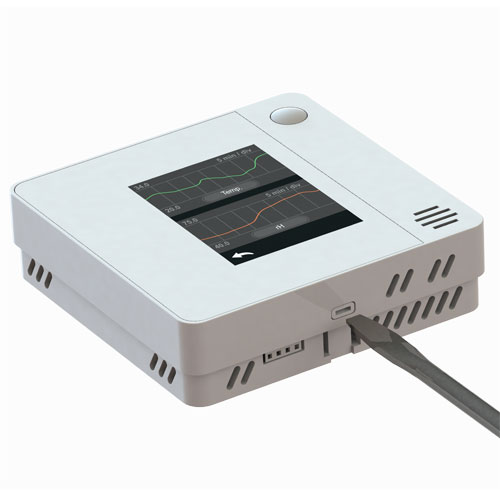

The LCD and TS skin colours can be changed to suit the building decor. In addition the smart sensors are available in black and white. The sensors are mounted on the wall surface directly or to standard wall mounting boxes. The sensors have built-in BACnet MS/TP communication that allow interaction to the BMS systems (Building Management Systems). Optional Bluetooth wireless interface provides connection to Smart Phone App interface (iOS).

The QER10 BACnet sensors can be configured using Windows Device Configuration Tool (connected wirelessly using Bluetooth) or from SmartConfig iOS app. For ease of commissioning the sensor address can also be set from the bit switch or from the touchscreen.

Technical
Measurements	Temperature and CO2 (Carbon Dioxide)
Optional Measurements	Relative Humidity (-RH Option) Relative Humidity and VOC Volatile Organic Compounds (-RH-VOC Option) Movement / Occupancy (-OE Option)
Control Functions	2 Independent PI Control Loops Configurable for Temperature, Humidity, VOC or CO2 Maximum Output of the Control Loops (VAV Control)
Communication Protocol	BACnet MS/TP Communication Protocol, RS485 Over-Voltage Protected
Power Supply	24Vac/dc
Universal Inputs	2 x Universal Inputs (NTC10, 0-10V, Digital Volt-Free)
Analogue Outputs	4 x Analogue 0-10Vdc Outputs, Max 2mA
Digital Outputs	Optional 1 x 24V Relay Output (-RL Option)
Country of Origin	United Kingdom

QER10 Smart BACnet Room CO2 and Temperature Sensor

Product Code: QER10-BAC
SKU: 1000 2
Availability: Contact Us

£174.00

Available Options

Interface

Extra Measurements

Extra Outputs

Colour

QER10 Smart BACnet Room CO2 and Temperature Sensor

£174.00
