xER 0-10V Sensors Wiring

The VER10 0-10V Room VOC (TVOC) and Temperature sensors have been designed for measuring VOC (Volatile Organic Compounds) and temperature in modern buildings. The VER10 sensors can have optional PIR Occupancy sensor. The sensors provide WELL Building Standard ® Compliant TVOC Concentration, RESET® Air compliant TVOC concentration and TVOC Ethanol Concentration calculation.

The sensors have 4 x 0-10Vdc outputs for transmitting the measurement signals to the BMS, or for local control signals. Optional 24V relay output availale e.g. for the PIR occupancy sensor status. The measurement signals can be scaled to match the controller input ranges.

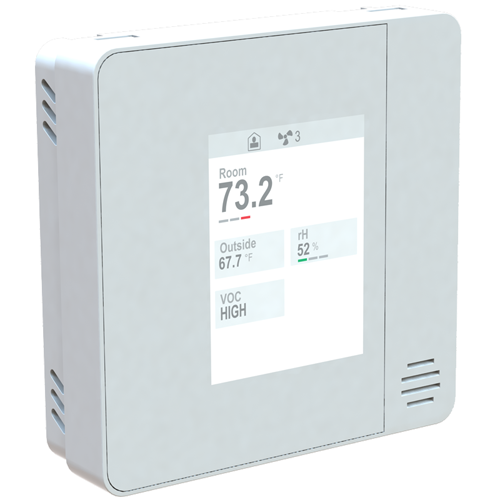

With LCD colour display option the sensor can be used to indicated measurements and status of the system. The measurement locations, descriptions, language etc. can be configured to suit the requirements. The sensors can operate as TRAFFIC LIGHT alarm units by changing the display colour based on the alarm limits.

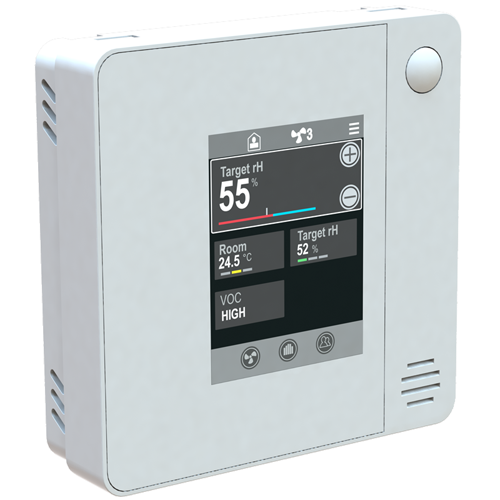

The TS colour touchscreen option converts the sensor to operate also as the Room Setpoint Unit sending the required setpoint using 0-10Vdc signal to the master controller/BMS. The sensor can also be used for Blinds Levels and Light Level control using the 0-10Vdc signals. The display can be locked from unauthorized use.

The sensors also incorporate 2 x PI control loops that can be used e.g. to control cooling and VOC. The sensors can also provide single stage heating/cooling/humidity/dehumidify control.

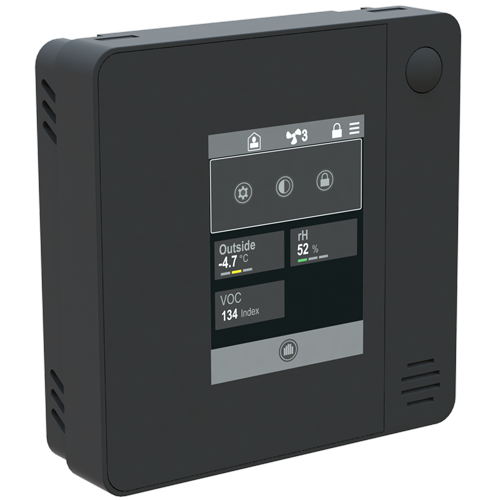

The LCD and TS skin colours can be changed to suit the building decor. In addition the sensors are available in black and white. The sensors are mounted on the wall surface directly or to standard wall mounting boxes.

The QER10 Modbus sensors can be configured using Windows Device Configuration Tool (connected wirelessly using Bluetooth) or from SmartConfig iOS app.

Technical
Measurements	VOC and TVOC (Total Volatile Organic Compounds) TVOC Ethanol Concentration Calculation WELL Building Standard ® Compliant TVOC Concentration RESET® Air compliant TVOC concentration Temperature and Humidity
Optional Measurements	Movement / Occupancy (-OE Option)
Control Functions	2 Independent PI Control Loops Configurable for Temperature, Humidity and VOC
Power Supply	24Vac/dc
Analogue Outputs	4 x Analogue 0-10Vdc Outputs, Max 2mA
Digital Outputs	Optional 1 x 24V Relay Output (-RL Option)
Country of Origin	United Kingdom

VER10 Room TVOC, Humidity and Temperature Sensor, 4AO (0-10V)

Product Code: VER10
SKU: 1300 0
Availability: Contact Us

£140.00
