TCR04 BACnet Room Temperature Controller with LCD, 2UI, 3AO, 2DO
Description
Specification
Documentation
Wiring

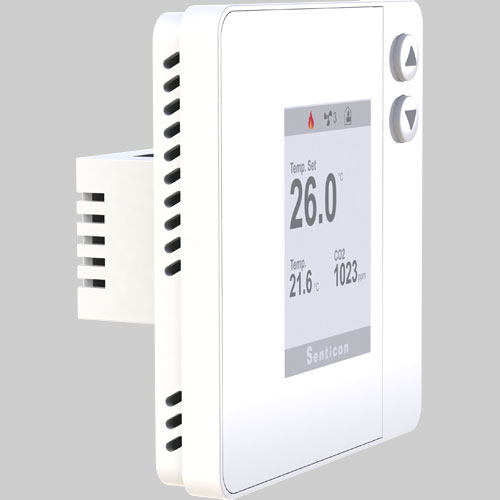

The TCR4/QCR4 Series Controllers have been designed to be wall mounted temperature controllers in room spaces. Optional occupancy sensor with 2-button version. The controllers are suitable for a wide range of applications and have pre-defined application logic that covers most room control heating and cooling systems such as fan coil units, chilled ceilings, zone heating etc.

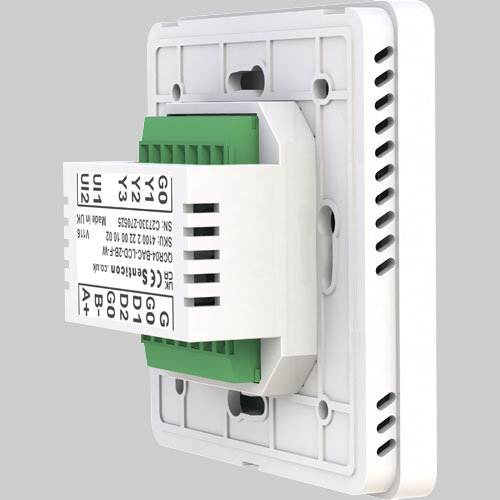

The room controllers have colour LCD screen indicating the current measurement and controller operating status. The user can adjust the setpoint and fan speed through the push buttons. The controllers are mounted on the wall surface directly or to standard wall mounting boxes. The controllers have built-in BACnet MS/TP communication that allow interaction to the BMS systems.
The TCR04/QCR04 Modbus controllers can be configured using Windows Device Configuration Tool (connected wirelessly using Bluetooth) or from SmartConfig iOS app. For ease of commissioning the controller address can be set from the bit switch or from the touchscreen.
Technical
Measurements
Room Temperature
Optional PIR Sensor (only with 2-button version)
Control Functions
4-Stage PI Control Loop (2 x Cooling, 2 x Heating)
Change-Over Control (Heating/Cooling)
EC Fan Control
Condensation Control
0-10V Modulating and 6-Way Valve Control
Occupied, Unoccupied, Off Control Modes
Frost Protection Logic
Temperature Control Deadzone Settings for both Heating and Cooling
Valve Exercise Function (Anti-Jam)
Communication Protocol
BACnet MS/TP Communication Protocol, RS485 Over-Voltage Protected
Power Supply
24Vac/dc
Universal Inputs
2 x Universal Inputs (NTC10, 0-10V, Digital Volt-Free)
Analogue Outputs
3 x Analogue 0-10Vdc Outputs, Max 2mA
Digital Outputs
2 x 24Vac Triac Outputs, 1A max.
TCR/QCR4 Compact Controller Data Sheet (EN) (1.89MB)
Environmental Product Declaration xER1-xCR04-LCD (51.55KB)
TCR04 BACnet Room Temperature Controller with LCD, 2UI, 3AO, 2DO
Brand:
Senticon Ltd
Product Code:
TCR04-BAC
SKU:
4000 2
Availability:
2-3 Days
£137.00
Available Options
Interface
-LCD-2B Colour LCD With 2 Buttons
-LCD-3B Colour LCD With 3 Buttons
Extra Measurements
No Extra Measurements
-OE Movement Sensor (PIR) (+£48.00)
Colour
-W White
Add to Cart
